DIN 605

FLAT COUNTERSUNK HEAD BOLTS

WITH LONG SQUARE NECK DIN 605

Steel Grades: 4.8, 8.8, 10.9

Finish: Self, Black, Bright Zinc, Hot Dip Galvanized

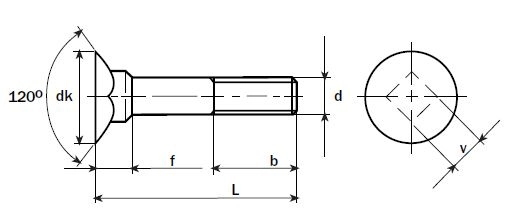

Dimensions

d			M6		M8		M10
P			1		1.25		1.5
b		1	18		22		26
		2	24		28		32
		3	—		41		45
dk		max.	16.55		20.65		24.65
		min.	15.45		19.35		23.35
ds		max.	6		8		10
		min.	5.52		7.42		9.42
fn		max.	7.45		9.45		11.55
		min.	6.55		8.55		9.45
r		max.	0.9		1.2		1.5
v		max.	6.48		8.58		10.58
		min.	5.52		7.42		9.42
L			ls and lg
			ls	lg	ls	lg	ls	lg
Nominal	min.	max.	min.	max.	min.	max.	min.	max.
30	28.95	31.05	—	12.50	—	16.00
35	33.75	36.25	—	12.50	—	16.00
40	38.75	41.25	17.00	22.00	—	16.00	—	18.00
45	43.75	46.25	22.00	27.00	16.75	23.00	—	18.00
50	48.75	51.25	27.00	32.00	21.75	28.00	16.50	24.00
55	53.50	56.50	32.00	37.00	26.75	33.00	21.50	29.00
60	58.50	61.50	37.00	42.00	31.75	38.00	26.50	34.00
65	63.50	66.50			36.75	43.00	31.50	39.00
70	68.50	71.50			41.75	48.00	36.50	44.00
80	78.50	81.50			51.75	58.00	46.50	54.00
90	88.75	91.75					56.50	64.00
100	98.25	101.75					66.50	74.00


d			M6		M8		M10
L			WEIGHT IN KG/1000 PCS
30			8.80		15.40
35			9.80		17.40
40			10.80		19.30		30.60
45			11.90		21.30		33.60
50			12.90		23.20		36.50
55			13.90		25.20		39.40
60			14.90		27.10		42.40
65					29.10		45.30
70					31.00		48.20
80					34.90		54.10
90							59.90
100							65.70
